How to design your own multi-use games area

Our ARENA product range comes with various standard configurations that fit different requirements, but you may need a ball court tailored to your budget, space or community needs.

As ARENA is a modular system which offers maximum flexibility, you can design your own bespoke structure in no time.

Here are a few simple steps to follow.


children playing football on a custom multi-sports court

Horizontal Line

How to customise ARENA Multisports

ARENA is our flagship multi-sports system made from durable and high quality materials. These extremely versatile multi-use games areas can be adapted to fit your requirements.​

The diagram below shows the elements that you can customise in our ARENA to suit your needs.


Use the green circles to explore the components

How to customise ARENA multi-sports court 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

Horizontal Line

How to customise ARENA Lite

The ARENA Lite range offers a more standardised version of the ARENA but with the same flexibility to fit your requirements. This strong and durable multi-sports court is made from robust materials with a minimalist design.

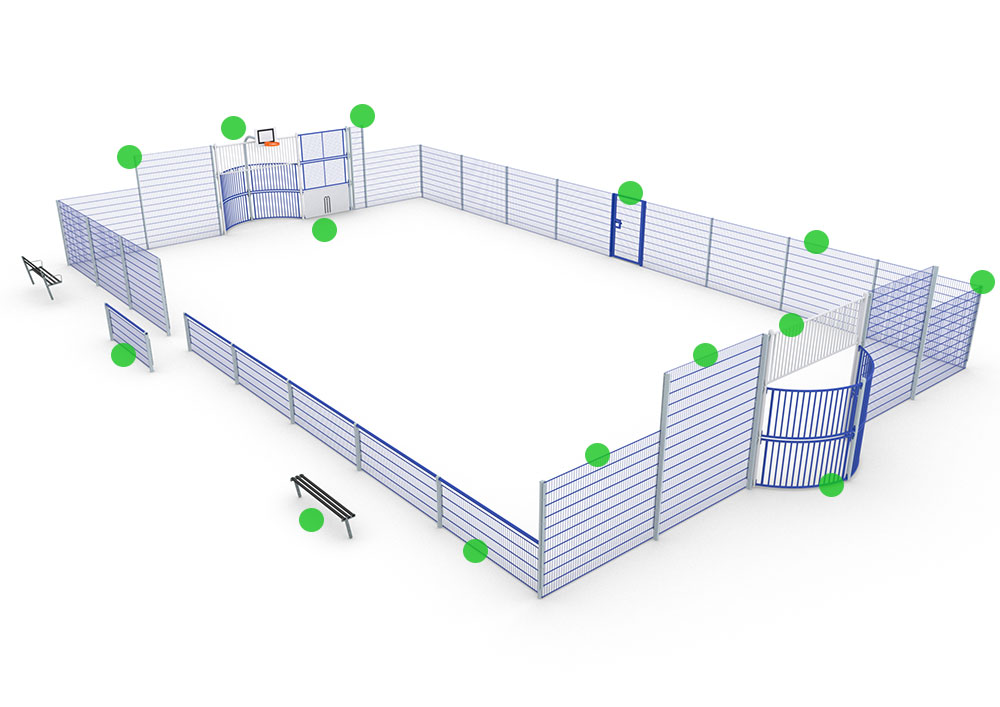

The diagram below shows the elements that you can customise in our ARENA Lite to suit your needs.


Use the green circles to explore the components

How to customise ARENA Lite multi-use games area 1 2 3 4 5 6 7 8 9 10 11 12 13 14

Horizontal Line

Step-by-step guide for creating a bespoke multi-sports games area

1. Establish the playing zone

Bird's eye view of a multi-use games area court in Australia

It’s important to get the size of your ARENA right for the site and for the users. We can design it specifically to cater for your needs.

ARENA has 3m wide goals and 1m or 2m wide panels, to make your ball court as large or as small as required - it couldn’t be easier!

Just remember, in order to have that stylish rounded corner look, the width of the ARENA playing zone will be an even number, i.e. 8m wide, 10m wide and so on!

2. The goal ends

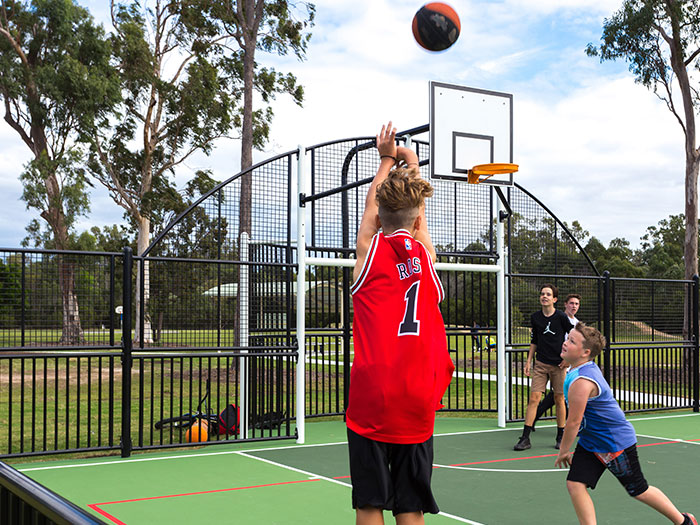

teenagers playing basketball on a multi-use games area

ARENA goal ends are ideal for enabling users to practice their shooting skills and provide the perfect solution for one-on-one games.

Our range includes goal ends that cater for many ball sports with the ability to customise them to your needs.

View our selection of goal ends

3. Panel heights and types

Multi-use games area with blue and white panels in different heights

Panels are available in 4 heights: 1m, 2m, 3m and 4m high; which helps keep things simple when designing and building your ARENA.

Lower bar panels come as standard. For hockey areas you can have solid polyethylene panels.

There are also different types of panels that you can choose from to suit your criteria; these include, bar, mesh and solid panel options.

Choose from the same height side and goal end walls or make each wall a different height.

4. Making an entrance

entrance to the multi-use games area court with green panels

All entrance gates and chicanes are designed to allow easy access for all.

The escape points behind the goal allow for quick ball retrieval as well as an additional entrance / exit point, however they can be closed off if required with a mesh infill.

Vehicle access gates are also available to allow emergency services or maintenance vehicles into the area when required.

5. Additional sports games and accessories

children playing ball games with the MUGA accessories such as the skills panels

Skill panels are available in various designs and colours, they can be included on any ARENA and positioned at any height. Accuracy and other coordination skills can be practiced and honed.

Reverse facing basketball boards and hoops can be added to the back of the goals to increase the number of users in the system.

Mini goals offer the users extra elements of play. These can be positioned wherever required and allow smaller groups to practice in different parts of the system.

6. Add seating and shelters

meeting point and seating area on an outdoor sports area

With football being the game of two halves and basketball being split up into quarters, even the pros need a break.

Add some team shelters to your sports court, giving the players somewhere to perch during their breaks, as well as providing spectators with somewhere dry to watch the games being played out.

Sin bin, lean back, chat room, meeting point and hub seating are specifically styled to match ARENA for a complete sporting experience.

Explore seating and accessories

7. Type of surfacing and style

surfacing on outdoor sports courts and multi-use games areas

ARENA can go onto any hard-standing surface and we can also supply surface mounted ARENA systems.

Tarmac is still the most popular surface for ARENA. It’s easy to install, easy to maintain and makes a good surface for the majority of sports.

Want a splash of colour? An acrylic resin surface could be for you. It will let water drain through, eliminating puddles and it can be coloured to your taste. Resin is ideal for running tracks around the outside of an ARENA as well as inside.

8. Choose your colour

multi-use games area in black, also available in other colours

Are you in an area of natural beauty, but need to supply sports equipment?
HAGS have installed MUGAs into woodlands and green areas, which fit in with the natural environment due to the number of colours available.

Below are our standard colour options. If you require a different colour, please get in touch.
